5T1005

FITS - LC225

Replaces - K004099

Pad Size - Width: 210mm / Height: 108mm

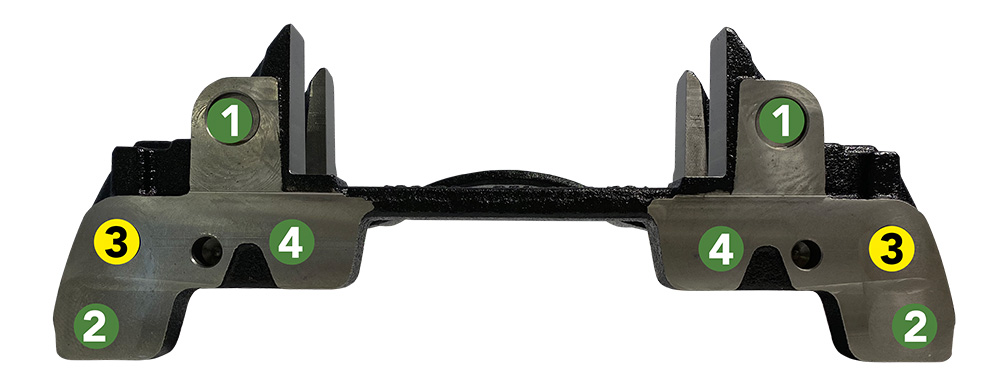

All dimensions are measured from hole centre to hole centre. Counterbored holes highlighted yellow.

1 = 266mm / 2 = 400mm M16 x 1.5
3 = 378mm M16 x 1.5 / 4 = 210mm M16 x 1.5

Note:

Manufacturer's and other wholesaler's part numbers used in this catalogue are for cross reference purposes only and do not imply anything about the origin or manufacturer of the product.

If you have any questions relating to this product please contact technical@meibrakes.com
